Importing an SAP BW OHS Extract Data Object

Import an SAP BW OHS Extract data object to specify the SAP BW object from which you want to read data. You can read data from an open hub destination or InfoSpoke. You can then create a data object read operation based on the data object.

Select a project or folder in the

Object Explorer

view.

Click

File

New

Data Object

Select

SAP BW OHS Extract Data Object

and click

The

New SAP BW OHS Extract Data Object

dialog box appears.

Enter a name for the data object.

Click

Browse

next to the

Location

option and select the target project or folder.

Click

Browse

next to the

Connection

option and select the SAP connection from which you want to import the metadata of the open hub destination or InfoSpoke.

To add a resource, click

Add

next to the

Selected Resources

option.

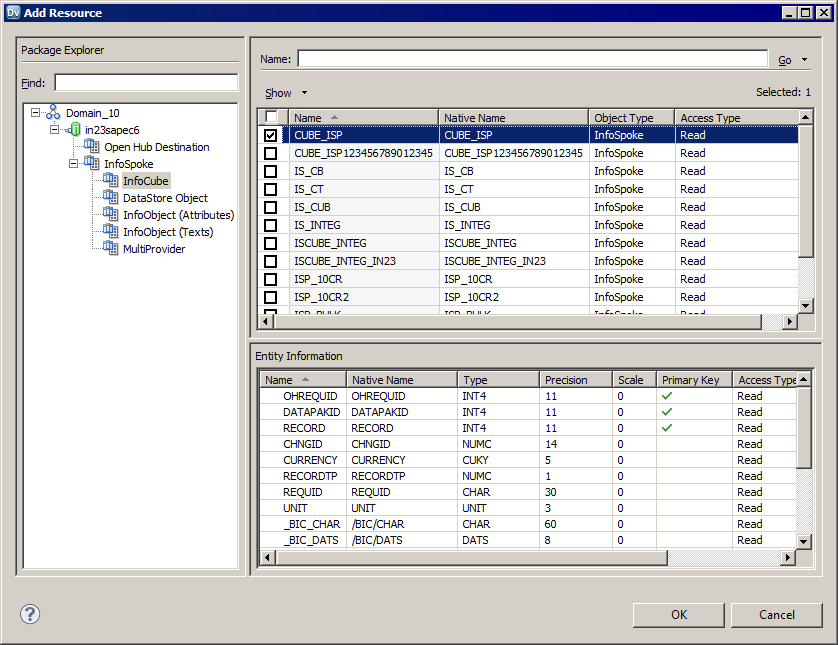

The

Add Resource

dialog box appears.

On the left pane, expand the connection name.

To import an open hub destination, select the

Open Hub Destination

option on the left pane. A list of open hub destination resources appear on the right pane. Select the resource that you want to import.

To import an InfoSpoke, expand the

InfoSpoke

option and select the object type on the left pane. A list of resources of the selected object type appear on the right pane. Select the resource that you want to import.

You can also search for a resource by entering the resource name in the

Name

field.
