Step 2. Form the URL that Calls RunDefinition.jsp

To call

RunDefinition.jsp

, form a URL that includes the definition ID of the archive project.

The URL that calls

RunDefinition.jsp

has the following syntax:

http://<Data Archive Host>:<Data Archive Port>/jsp/RunDefinition.jsp?DefinitionID=<Definition ID>

The parameters are included in brackets. When you formulate the URL, you insert values for all of the parameters.

The following table describes the parameters to formulate the URL:

Parameter	Description
Host	Name of the Data Archive host.
Port	Name of the Data Archive port.
Definition ID	The definition ID of the archive project.

Query the ILM repository to find the definition ID of an archive project. You can also find the definition ID of an archive project on the

Manage Archive Projects

page in Data Archive. To access the

Manage Archive Projects

page, click

Workbench

Manage Archive Projects

. The definition ID is the number inside the parenthesis located next to the project name.

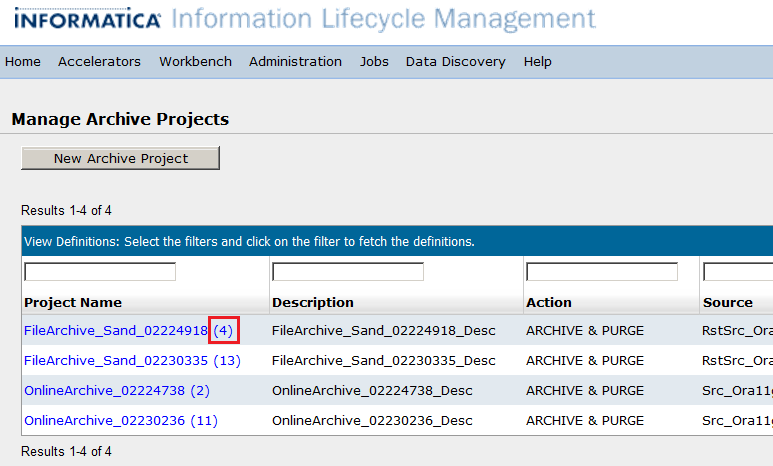

The following image shows a list of archive projects and their definition IDs on the

Manage Archive Projects

page:

The following URL is an example of a URL that calls

RunDefinition.jsp

http://invr28ilm156:8080/jsp/RunDefinition.jsp?DefinitionID=4
