Probabilistic Model Data View

The Data view displays the reference data rows in the probabilistic model and the number of label values that you assign to each row. The Data view also displays the total number of labels that you assigned to the values in the current model.

When you select a reference data row, the values in the row appear in an editor below the Find field. To assign a label to a reference data value in a row, right-click the value in the editor and select a label value.

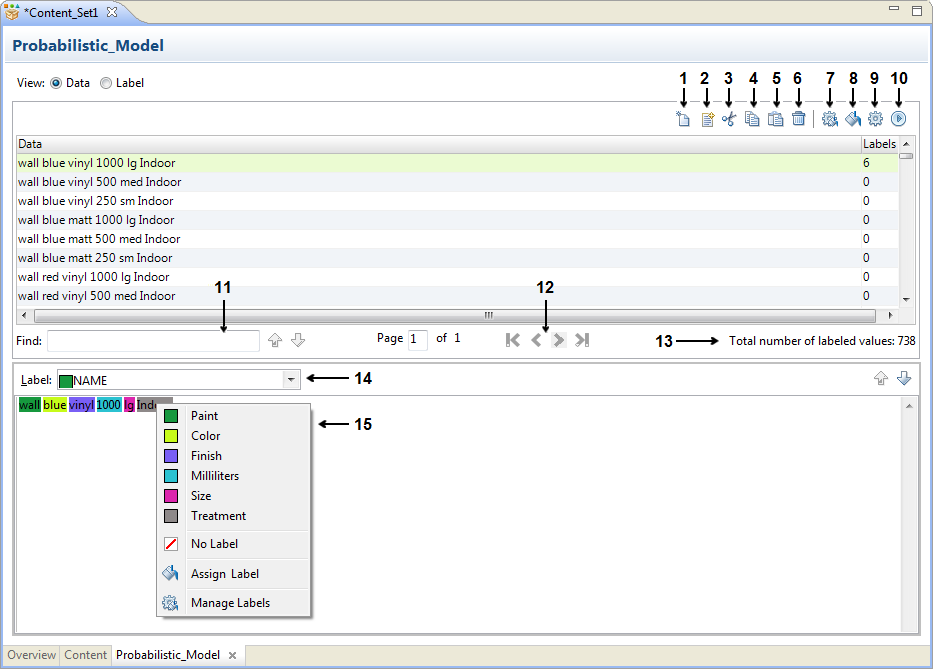

The following image shows the probabilistic model options that you can use when you select the Data view:

The Data view shows the data rows in a single column and shows the number of labels for each row in a parallel column. The Data view also includes options to add labels and data rows and to compile the model.

The Data view includes the following options:

Add Row

Inserts a blank data row.

Append data.

Imports data from a data object in the Model repository.

Cut

Removes a data row from the probabilistic model and adds the data row to the clipboard.

Copy

Copies a data row to the clipboard.

Paste

Pastes a data row from the clipboard to the probabilistic model.

Delete

Deletes a data row from the probabilistic model.

Manage Labels

Opens the

Manage Labels

dialog box. Use the dialog box to add or delete label values from the probabilistic model.

Assign Label

Assigns a label to one or more reference data values that you select. You can use the option to assign a label to all instances of a reference data value in the model.

Edit Properties

Displays the probabilistic model properties.

Compile

Compiles the probabilistic model.

Find field

Finds rows in the model that contain the reference data value that you enter. Use the Up arrow and Down arrow to move to the rows that contain the value.

Forward and back arrows

Moves forwards and backwards through the rows of data values in the model.

Total number of labeled values

Indicates the number of reference data values that use a label.

Label field

Displays a label value that you can apply to the reference data value that you select.

Label menu

Displays a list of options that you can use to assign a label to one or more reference data values. To open the menu, right-click a reference data value in the reference data editor.
