Step 1. Create a Group Statement with Conditions

Create Repeating Group statements to process the details for patients that each doctor submits claims for. Create a Group statement to process a single set of patient details for a specific patient.

In the

XMap

view, add a Repeating Group statement to the Patient_Claim
XMap. To add a Repeating Group statement, in the XMap editor grid, right-click and select

New

Repeating Group

To define the Repeating Group, perform the following steps:

To name the statement, double-click the Name
field and type the name PatientDetails
.

Drag the input schema node Patient
into the Input field of the PatientDetails
statement.

Each time the transformation iterates a Repeating Group statement, the transformation processes a set of patient details.

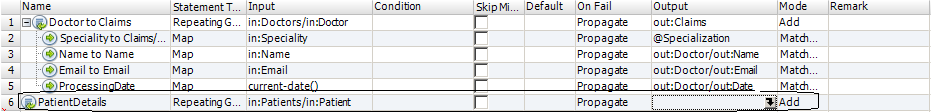

The following image shows the final PatientDetails
Repeating Group:

"The mapping statements grid contains the PatientDetails Repeating Group, which iterates forthe Patient element in the Input schema. Whenever the input file contains a Patient element, all the mapping statements nested under the Repeating Group statement will be performed."

To create a claim for each appointment, compare the appointment details to the doctor specialization. Drag the Patient
input schema node to the Claims
output schema node.

The editor creates a Repeating Group that provides the context for the patient data. We want to change the Repeating Group to a Group that contains a set of statement to perform for each claim in the output.

To define the Repeating Group, perform the following steps:

To change the statement to be a Group statement, click the arrow to the right of the Statement Type
field and select Group
.

When the transformation processes the Group statement, the transformation processes the set of statements nested in the Group statement.

To name the statement, double-click the Name
field and type the name ContactDetails
.

Use the XPath Expression editor to edit the expression in the Output
field for the ContactDetails
Group statement. To open the XPath Expression editor, click the arrow to the right of the Output
field.

In the Expressions
pane, add brackets to the right of the expression to create the following expression:

out:Claims[]

We use brackets to create an XPath predicate that acts as a filter. We want to associate patient information with the doctor with whom the patient had an appointment. This is also the doctor who makes the insurance claim. In the next steps, we see how to do this.

To filter according to the doctor specialization, use the specialization element as the filter condition for the doctor appointments. To position the cursor in the expression, in the

Expressions

pane, click between the brackets in the expression

out:Claims[]

. In the Output Schema
tab, double-click to select the Specialization
node.

The action creates the following expression:

out:Claims[@Specialization]

To the right of the

Specialization

node in the expression, add an equals sign to create the following expression:

out:Claims[@Specialization=]

To use the filter to match the output Specialization
element to the input appointment Speciality
element, add the Speciality
element to the expression. Open the Input Schema
tab and double-click the Speciality
node that is under the Appointment
node.

There is a Specialty
input node under the Doctor
input node, and a Speciality
input node under the Patient
input node. We refer to the second node in this lesson.

The action creates the following expression:

out:Claims[@Specialization=../dp:input()/in:Speciality]

. The filter uses the

dp:input()

function to refer to an input node from the output statement. The expression returns nodes that match Specialization
to Speciality
.

To ensure that the claim data is matched or added for the relevant doctor, change the Mode
to Match or Add
.

The following image shows the final ContactDetails
Repeating Group statement:

"The PatientDetails Repeating Group statement has another Repeating Statement nested underneath it. The second Repeating Group iterates for the Speciality element in the Input schema. For each patient in the input, the statement checks the speciality in the appointment in order to group the patient according to doctor."

To transform a set of details for a specific patient, create a Group statement. Drag and drop from the

PersonDetails

input node to the

Patient

output node. In the grid, right-click the PersonDetails to Patient
Group, and select Demote
to nest the Group statement under the ContactDetails
Repeating Group.

The XMap editor creates a Group statement in the grid. This statement passes a single set of patient details to the output XML. When the Group statement is indented, this signifies that it is performed for every patient whose doctor appointment details match the speciality for that iteration. This means that the set of patient details are associated in the output with the doctor that makes the claim.

To find every patient for the Group statement according to the patient ID, use the XPath Expression editor to edit the expression in the Output
field. To define the Output
field, perform the following steps:

To open the XPath Expression editor, click the arrow to the right of the Output
field.

In the Expressions pane, add brackets to the right of the expression to create the following expression:

out:Patient[]

We want to find input patient contact information according to the patient ID. We also assign the input patient ID data to the ID output element. In the next steps, we see how to do this.

To identify the patient according to the patient ID number, filter the patient according to the ID
node as part of the output expression. Open the Output Schema
tab and double-click the ID
node.

The action creates the following expression:

out:Patient[out:ID]

To the right of the expression, add an equals sign to create the following expression:

out:Patient[out:ID=]

To use the filter to match the output ID
element to the input id
element, add the id
element to the expression. Open the Input Schema
tab and double-click the id
node.

The action creates the following expression:

out:Patient[out:ID=../dp:input()/@id]

. The statement filters patients according to ID and passes the ID to the output.

The following image shows the final Group statement:

"The mapping statement grid contains a Patients Group nested under the Repeating Groups that iterate information according to the patient and the speciality for the doctor appointment associated with the patient. Use this group to logically group all statements that you want to perform for a patient."

Drag the mouse from the Last
input schema node to the Name
output schema node.

The XMap editor creates a Map statement named Last to Name
in the grid.

To demote the Last to Name
statement to be within the context of the PersonDetails to Patient
Group statement, select the statement and click Alt-Right
as needed.

The statement is nested within the Repeating Group and Group statements that select patients according to the filters that you defined. The patients are filtered according to the doctor that makes the claim and according to the patient ID. For each iteration of the Group statement, the statement passes the last name of the filtered patient to the output XML.

To combine the first and last name in the Name
output schema node, use the XPath Expression editor to edit the expression. To get data from both the first name and last name nodes in the input, edit the Input
field. To edit the Input
field, perform the following steps:

To open the XPath Expression editor, click the arrow to the right of the Input
field.

To select a function, open the XPath
tab and select

Functions

String

To combine the first and last names, use the

concat()

function. Scroll down and double-click

concat()

The action creates the following expression:

concat()in:Name/in:Last

To correctly position the last name, delete the close parenthesis character, then add it to the end of the expression.

The function operates on parameters that are within the parenthesis, so we must position the name within the parenthesis. The action creates the following expression:

concat(in:Name/in:Last)

To add the first name, open the Input Schema
tab and double-click the First
node.

We want to append the first name after the last name. The action creates the following expression:

concat(in:Name/in:Lastin:Name/in:First)

To add a comma and space between the last and first name, add commas and quotation marks between the last name node and the first name node. Edit the expression to create the following expression:

concat(in:Name/in:Last,', ',in:Name/in:First)

We use commas to separate parameters within the concat function. The expression we created adds a space and comma between the last and first names.

To test the expression, click Test Expression
. Then, to enter the expression into the statement, click OK
.

When you test the expression, the Results
panel displays all the nodes that result from the expression. With this method, you can check that the results are correct before you add the statement to the XMap. You can adjust the expression if needed.

To ensure that the claim data is matched or added for the relevant doctor, change the Mode
field to Match or Add
.

To ensure that if there is an error, the statement fails, change the On Fail
field to Propagate
.

The following image shows the final statement:

Drag from the InsuranceID
input schema node to the InsuranceID
output schema node. To demote the statement to be within the context of the PersonDetails to Patient
Group statement, select the statement and click Alt-Right
as needed.

The XMap editor creates a Map statement named InsuranceID to InsuranceID
in the grid. This statement passes a single insurance identification number to the output XML.

The following image shows the final statement:

"The mapping statement grid contains a Map statement that maps from the InsuranceID element in the input to the InsuranceID element in the output. Each time that the input contains an insurance ID for a patient, the information is passed to the output.If there is no insurance ID in the input, this is considered a failure for the statement, and the failure is propogated as the On Fail field has Propogate selected. No information is collected for a patient without an insrance ID."

To pass the date of the appointment to the output, drag from the Date
input schema node to the AppointmentDate
output schema node. To demote the statement to be within the context of the PersonDetails to Patient
Group statement, select the statement and click Alt-Right
as needed.

The XMap editor creates a Map statement named Date to AppointmentDate
in the grid.

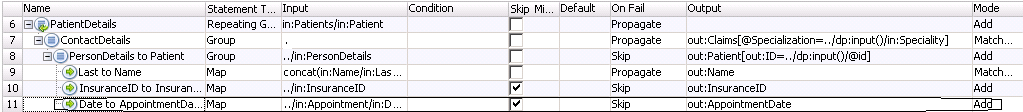

The following image shows the final statement:
