Creating a Data Processor Transformation for an XML Source

Back Next

Step 3. Create and Run the Mapping

You can add the Data Processor transformation to a mapping and run the mapping.

In the

Object Explorer

view, create a mapping or select a mapping and select

Open Mapping

From the

Object Explorer

view, drag the Data Processor transformation into the editor.

The following figure shows the mapping:

From the

Object Explorer

view, drag the Read_XML_TO_XML physical data object into the editor. Select

Read

to add the object as a source. The source appears in the editor. Drag the XML_port port in the source to the Input input port in the Data Processor transformation.

The mapping reads input from the Transactions.xml when it runs.

From the

Object Explorer

view, drag Write_CLIENTS physical data object into the editor. Select

Write

to add the object as a target. The target appears in the editor. Drag the Output output port in the Data Processor transformation to the XML_output input port in the target.

The mapping writes output to the Partners.xml when it runs.

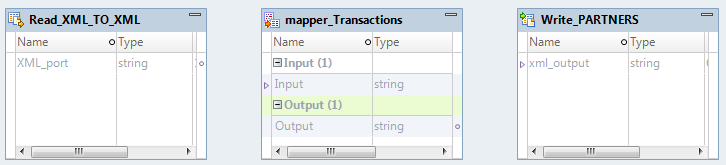

The following figure shows the mapping:
