Testing Connectivity Between Server Manager Instances

If a replication configuration uses multiple Server Manager instances, you can test whether each Server Manager instance can communicate with the other Server Manager instances in the same replication server group over the network. This test can help avoid connectivity problems during data replication.

You can test if the Main server can connect to each subserver, and test if each subserver can connect to the Main server and each of the other subservers.

In the Data Replication Console, on the

Server Manager

tab >

Servers

view, click the

Network Test

icon above the list of Server Manager instances, or right-click a Server Manager instance and click

Network Test

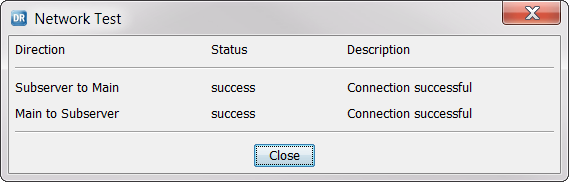

The

Network Test

dialog box appears.

The

Network Test

dialog box shows the connectivity status for each combination of Server Manager instances. Statuses are: success and failed.

If the Server Manager Main server is secured with Network Address Translation (NAT), the Server Manager subservers might fail to connect to the Main server. In this case, all of the Server Manager instances must use unidirectional connections.

Review the connectivity information. Then click

Defining the Main Server and Its Subservers

Configuring the Server Manager Main Server to Run with NAT
