Step 2. Perform Tasks for Deployed Topics

After you deploy the sources and supporting objects, you can view the topic details, copy an event, or create an event.

On the

Dashboard

tab, select the source controller where you deployed the source.

The

Topics

tab appears on the right pane. You can view the functions in the

Actions

menu on the lower-right pane.

To view the topic details, such as the event from the source, the source type, and the time stamp, perform the following tasks:

Select

View Topic

from the

Actions

menu in the lower-right pane.

The Topic Details page appears, displaying the topic details of the selected event.

The following figure shows the Topics Details page:

The figure shows the topic details, such as the source type and the time stamp for an event. You can also view the summary for a particular event on the right panel.

To copy event details and properties for a topic, perform the following tasks:

In the

View Topic Details

page, select any event, and click

Copy Event

The Create Event page appears.

If you want to create an event after you add or remove an event property from a topic, click

Create Event

When a success message, click

. Close the

Topic Details

page, and click the

Refresh

icon in the upper-left pane.

You can also use refresh from the

Actions

menu.

The number of events appears updated.

To publish an event for a topic with the specified values, or add or remove the properties for the event you want to publish, click

Create Event

from the

Actions

menu in the lower-right pane.

Enter the following values, and click

Create Event

acc_no: 14879

acc_status : Active

acc_type : Savings

city : Melbourne

name : John Smith

You can choose to provide only one value.

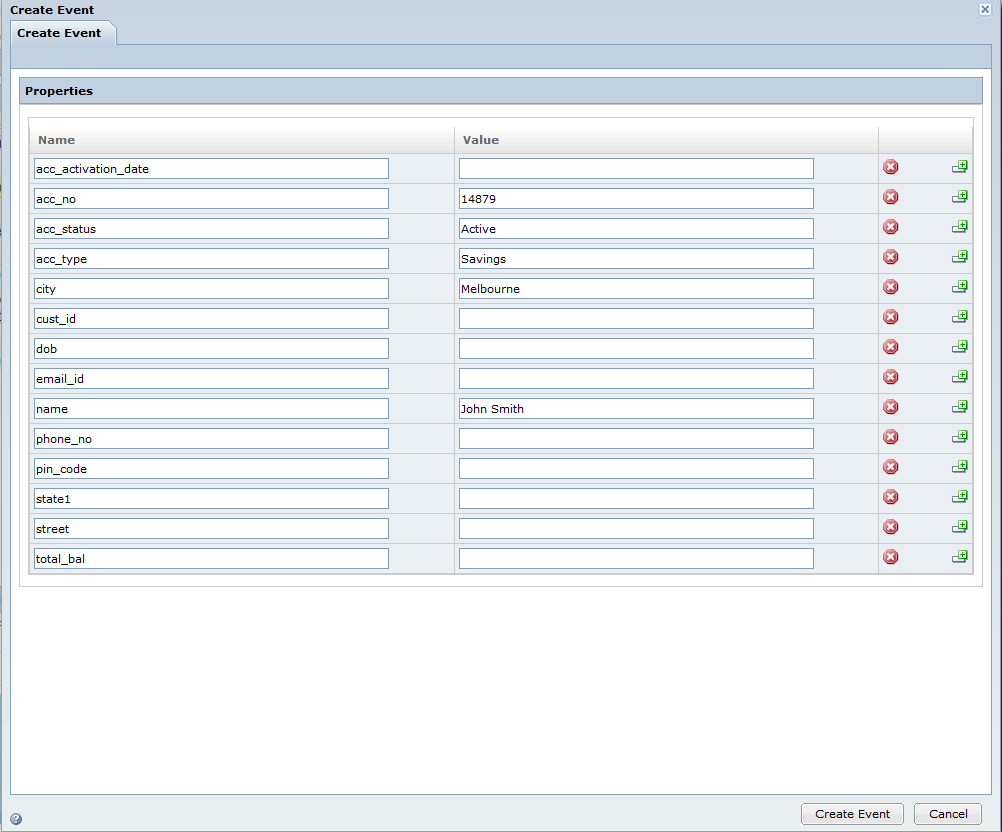

The following figure shows the properties dialog box, where you can add or delete event properties.
