Case Study: Data Integration Service Concurrency

The following case study tested a large number of concurrent mappings running on a single node Data Integration Service. The mappings used TPC-DS benchmark queries of medium complexity with Hive sources and parameterized HDFS targets. During the test, peak CPU utilization was ~20 cores (80%) for less than 5 minutes. The average utilization was ~8 cores.

Environment

Chipset	Intel® Xeon® Processor X5675 @ 3.06 GHz
Cores	4 x 6 cores
Memory	32 GB
Operating system	Red Hat Enterprise Linux 6.1
Hadoop distribution	Cloudera 5.15
Hadoop cluster	25 nodes

Performance Chart

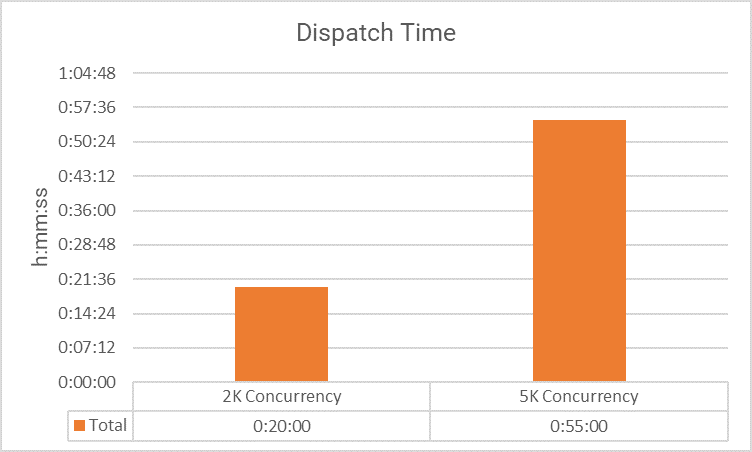

The following performance chart compares the dispatch times for 2K and 5K concurrent jobs. Dispatch time is the time taken by DIS to submit all the mappings to the cluster:

Conclusions

When you submit concurrent mapping requests, use the infacmd gateway service to optimize performance.

For more details, refer to the following Informatica Knowledge Base article:

Gateway Service to Submit Mappings and Workflows to the Data Integration Service
