Using Workflow Parameters and Variables to Write to a Dynamic Target File

Back Next

Step 1. Create a Flat File Data Object Parameter for the Target File Name

A mapping parameter represents a constant value that can change between mapping runs, such as connections, source file directories, or target file names. Create a user-defined parameter in the flat file data object to represent the flat file name that the data object writes to. Apply the parameter to the output file name property in the flat file data object.

Open the flat file data object used as the target in the mapping.

Click the

Parameters

view.

Click

Add

The

Add Parameter

dialog box appears.

Enter the parameter name.

For example, enter targetFile as the parameter name.

Select

String

for the parameter type.

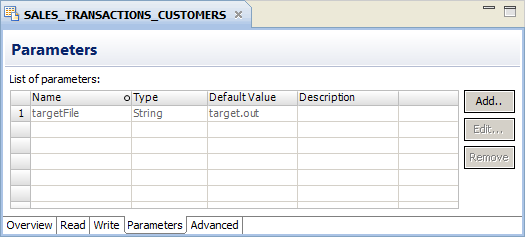

Enter a default value for the parameter.

For example, enter target.out as the default value.

Click

The Developer tool adds the parameter to the list of parameters for the flat file data object.

Click the

Write

view.

Select the Input transformation to view run-time properties that the Data Integration Service uses when it writes data to the file.

The following figure shows the Input transformation selected in the

Write

view:

In the

Properties

view, click the

Run-time

tab.

The following figure shows the

Run-time

tab:

In the

Value

column for the

Output file name

property, click

Assign Parameter

The

Assign Parameter

dialog box appears.

Select the parameter created for the flat file data object.

For example, select targetFile.

Click

The Developer tool displays the parameter name as the value of the

Output file name

property.

Click

File

Save
