Step 5. Setting Task Renderings

Process Developer can create an HTML Form (or an XSL file or a custom rendering) that will render the task information in the Process Central Task forms. You can edit this form to customize how task information is presented to the user in the Process Central web application.

In the Outline view select the approveTask
.

In the Properties view select the Renderings tab.

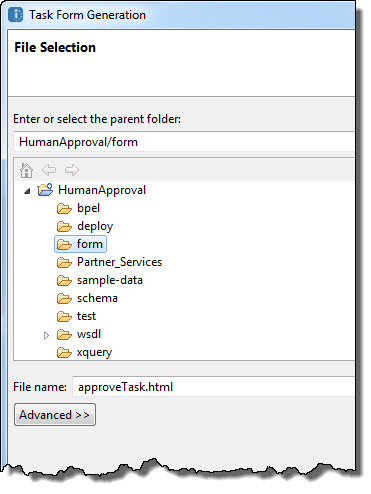

The Create Form
button presents a dialog were you can specify the

project

folder and name for the form.

You will create the form in the

form

folder and use the default name of

approveTask.html

After you select OK
, the Form editor opens.

You can see a preview of the form in the top half of the editor. Close the form.

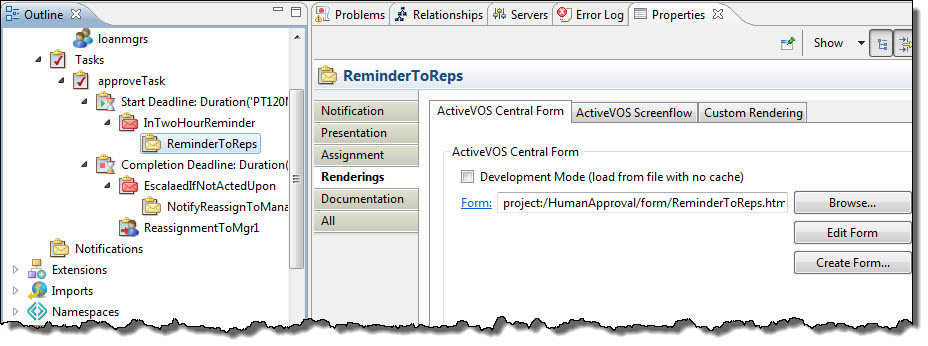

Create Process Central forms for the task notifications by expanding the approveTask in the Outline view and trhen creating new Process Central Forms for the two notifications: ReminderToReps
and NotifyReassignToManager
(highlighted in the following figure).

That's it. The task is now complete with escalations, notifications, and rendering information. All that remains is to create a People Activity based on the task, and to place it in the process.
