The Hub Overview diagram provides a visual overview of the existing entities, grouped into categories.

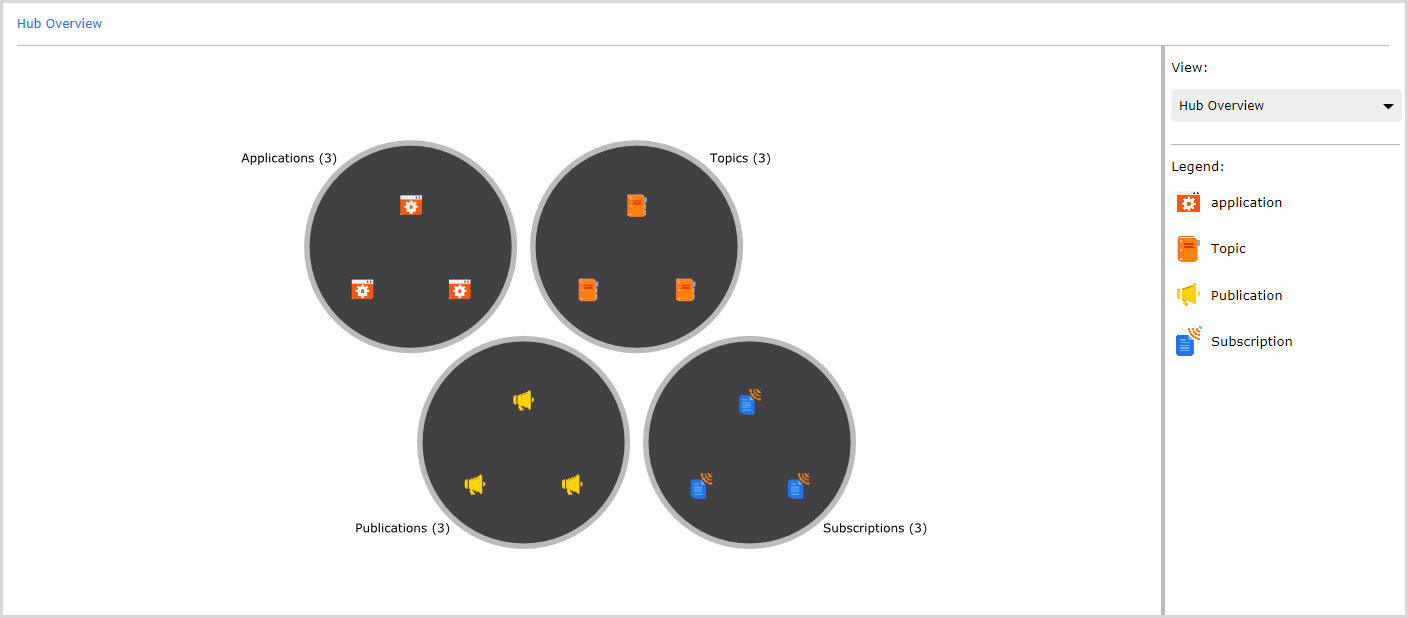

The following image shows a sample Hub Overview diagram:

When you hover over an entity in the diagram, all related entities are highlighted. For example, when you hover over a topic, the applications and the publications that publish to the topic and the subscriptions that subscribe to the topic are highlighted. When you click an entity, a drill down view of the entity and its relations to other entities appears. For example, when you click a publication, the drill down view shows the publishing application, the topic to which the publication publishes data, and the subscriptions that subscribe to the topic. Click any entity in the drill down view. The edit window of the selected entity displays.

You can filter the Hub Overview diagram to the following views:

Hub Overview. All entities including topics, related applications, publications, and subscriptions that are configured in
Data Integration Hub
.
Process errors. Entities with current error events.
Non-valid entities. Entities that are not valid.
Topics with no publications. Topics with no associated publications.
Topics with no subscriptions. Topics with no associated subscriptions.
Most used topics. Three most used topics, based on the number of publications and subscriptions that use the topic.

When you filter the diagram, entities that are not relevant to the selected filter appear in view only mode.

To search topics in the Hub Overview diagram, click the

Find Topic

button and enter the name of the topic. Topics that match the search criteria and its related entities are displayed in Hub Overview diagram.
