Manage Tab - Domain View

The

Domain

view displays an overview of the domain and its contents. You can use the domain view to monitor the domain status, resource consumption, and events. You can also perform domain actions, such as enabling and disabling services.

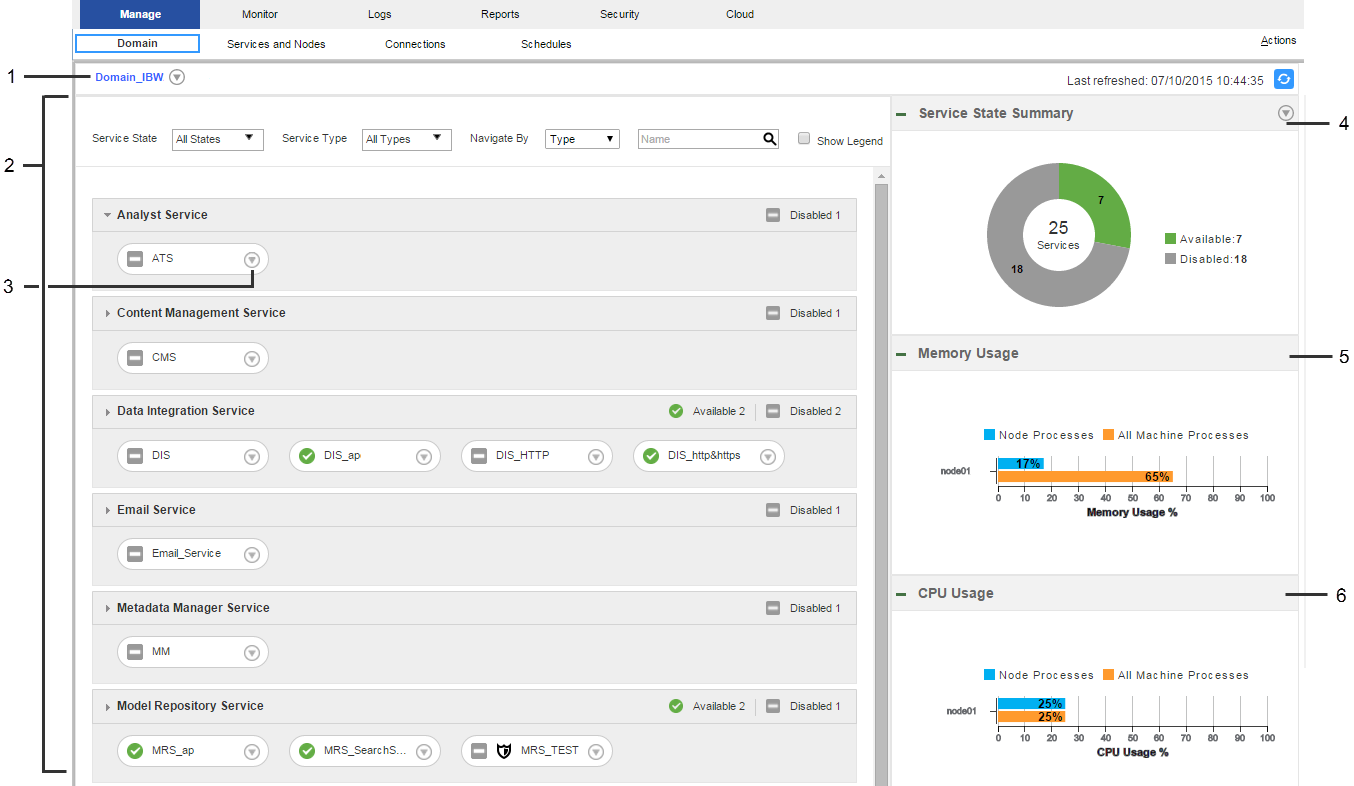

The following image shows the

Domain

view on the

Manage

tab:

The

Domain

view has the following components:

Domain Actions menu: Use the Domain Actions menu to view more information about the domain or shut down the domain.; Use the Domain Actions menu to perform the following tasks:
View Properties. Open the Services and Nodes view and display the properties for the domain.
View History. Open the History view and display domain events from the last day.
View Logs. Open the Logs tab and display Service Manager log events from the last day.
View Command History. Open the Command History panel and display the 50 most recent service lifecycle commands that were issued from the Administrator tool.
Shut Down Domain.
Contents panel: Displays domain objects and their states. Domain objects include services, nodes, and grids.
The following table describes the methods that you can use to view objects in the contents panel:

Method
Description

Service State
Filter services by the following states:
All states
Available
Unavailable
Disabled

Service Type
Filter some or all services in the domain.

Navigate by
Group objects by node, type, or folder.

Search
Search for an object by name. You can use an asterisk (*) as a wildcard character in this field.

Show Legend
View a list of state icons and descriptions.
Object Actions menus: Objects in the contents panel have Actions menus. Use the Actions menus to view information about domain objects or perform common tasks. The information you can view and the tasks that you can perform vary depending on which object you select.
Use the service Actions menu to perform the following tasks:
View Properties. Open the Services and Nodes view and display the properties for the service.
View History. Open the History view and display service events from the last day.
View Logs. Open the Logs tab and display service log events from the last day.
View Dependencies. Open the Dependency graph and display direct dependencies for the service.
Recycle Service.
Enable or Disable Service.

Use the node Actions menu to perform the following tasks:
View Properties. Open the Services and Nodes view and display properties for the node.
View History. Open the History view and display node events from the last day.
View Dependencies. Open the Dependency graph and display direct dependencies for the node.
Shut Down Node

Use the grid Actions menu to perform the following tasks:
View Properties. Open the Services and Nodes view and display properties for the grid.
View Dependencies. Open the Dependency graph and display direct dependencies for the grid.
Service State Summary: Doughnut chart that shows the number and state of the services in the domain. When you click a state in the chart, the contents panel displays services with that state.
Resource usage indicators: Bar charts that compare resource usage of a domain process to resource usage of all processes on the machine. The Domain view contains a memory usage indicator and a CPU usage indicator.
Manage tab Actions menu: Access help for the Domain view.

Method	Description
Service State	Filter services by the following states: All states Available Unavailable Disabled
Service Type	Filter some or all services in the domain.
Navigate by	Group objects by node, type, or folder.
Search	Search for an object by name. You can use an asterisk (*) as a wildcard character in this field.
Show Legend	View a list of state icons and descriptions.
